IPD(智能功率元器件)
ROHM的IPD(智能功率元器件)系列是在一枚芯片中内置了低导通电阻MOSFET和各种保护电路的车载级通用开关。为过热、过电流、过电压以及负载短路提供更高水平的保护。可用于设置在发动机仓内、车室内的阻性负载、电容负载、感性负载，还可用于工业设备用途。
Subcategory Search
* Gen (Generation) means the IPD development process generation.
| Family | Function | Generation | Output Channel | RDS (ON) (Typ.)[mΩ] | ||||
|---|---|---|---|---|---|---|---|---|
| 9-25 | 40-90 | 140-180 | 250- | |||||
| High Side | 电流检测 | 3rd Gen | 1ch | 3 Products | 3 Products | |||
| 3rd Gen | 2ch | Under Development | ||||||
| 标准 / 故障反馈 | 2nd Gen | 1ch | 4 Products | |||||
| 2nd Gen | 2ch | 1 Product | ||||||
| 可调过电流限制功能 | 2nd Gen | 1ch | 5 Products | |||||
| 2nd Gen | 2ch | 3 Products | ||||||
| Low Side | 标准 / 故障反馈 | 2nd Gen | 1ch | 4 Products | 5 Products | 4 Products | 4 Products | |
| 2nd Gen | 2ch | 5 Products | 2 Products | 2 Products | ||||
| 可调压摆率 | 2nd Gen | 1ch | 1 Product | |||||
| 多通道 | 2nd Gen | 4ch~ | 6 Products | |||||
参数搜索
Loading...
产品概要
IPD的功能

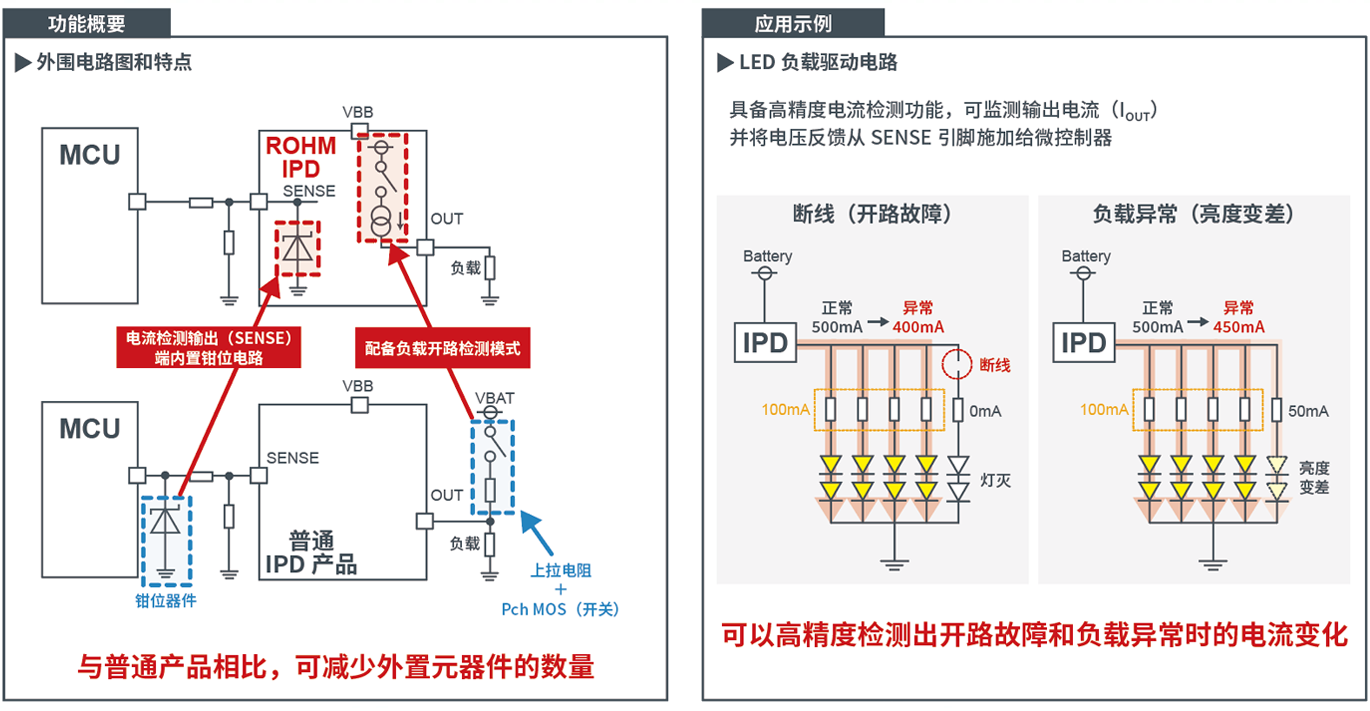

电流检测高精度输出电流监控器

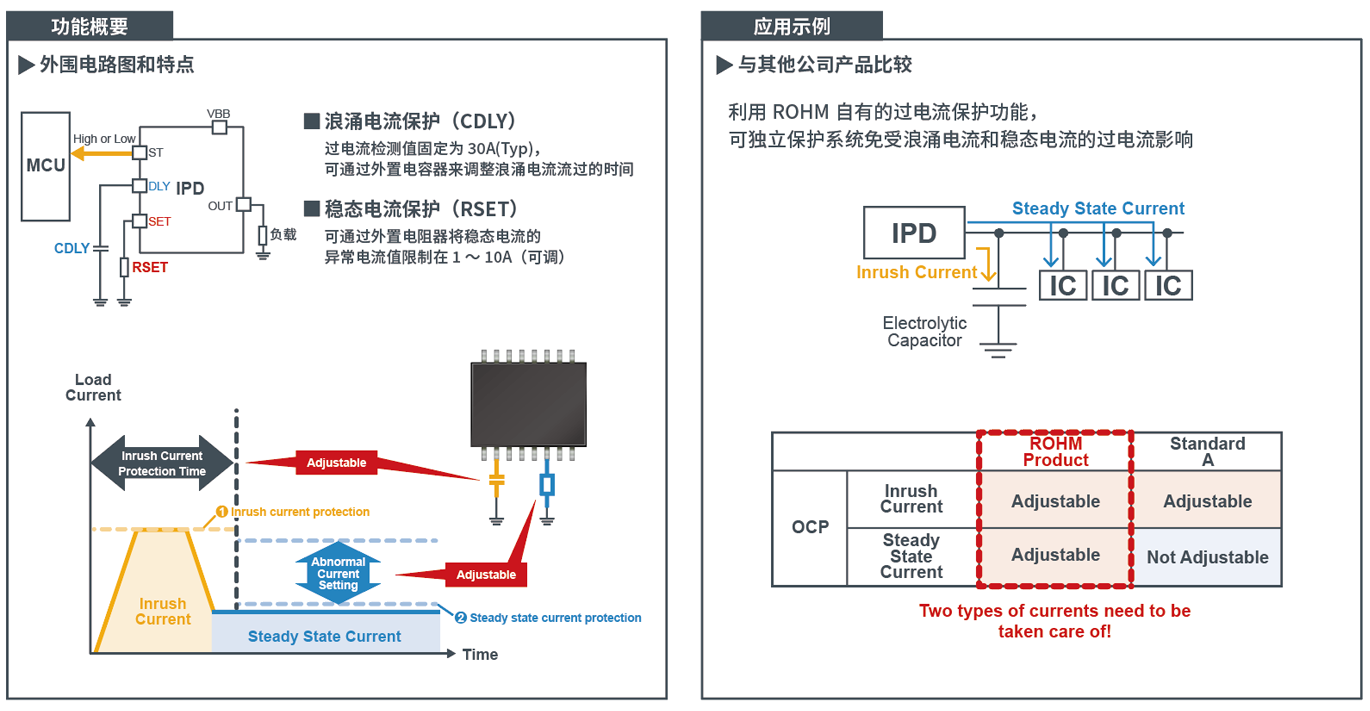

可调过电流限制功能根据负载提供相应的保护

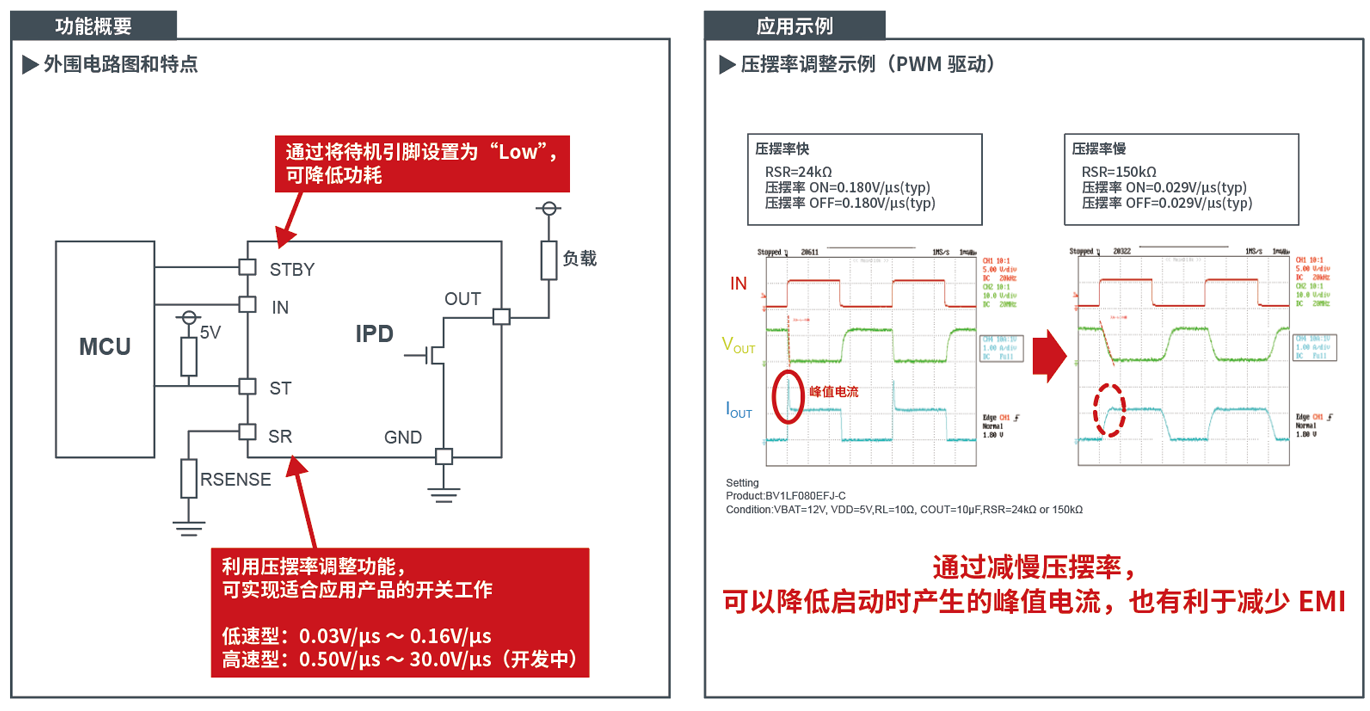

可调压摆率同时降低了开关损耗和噪声

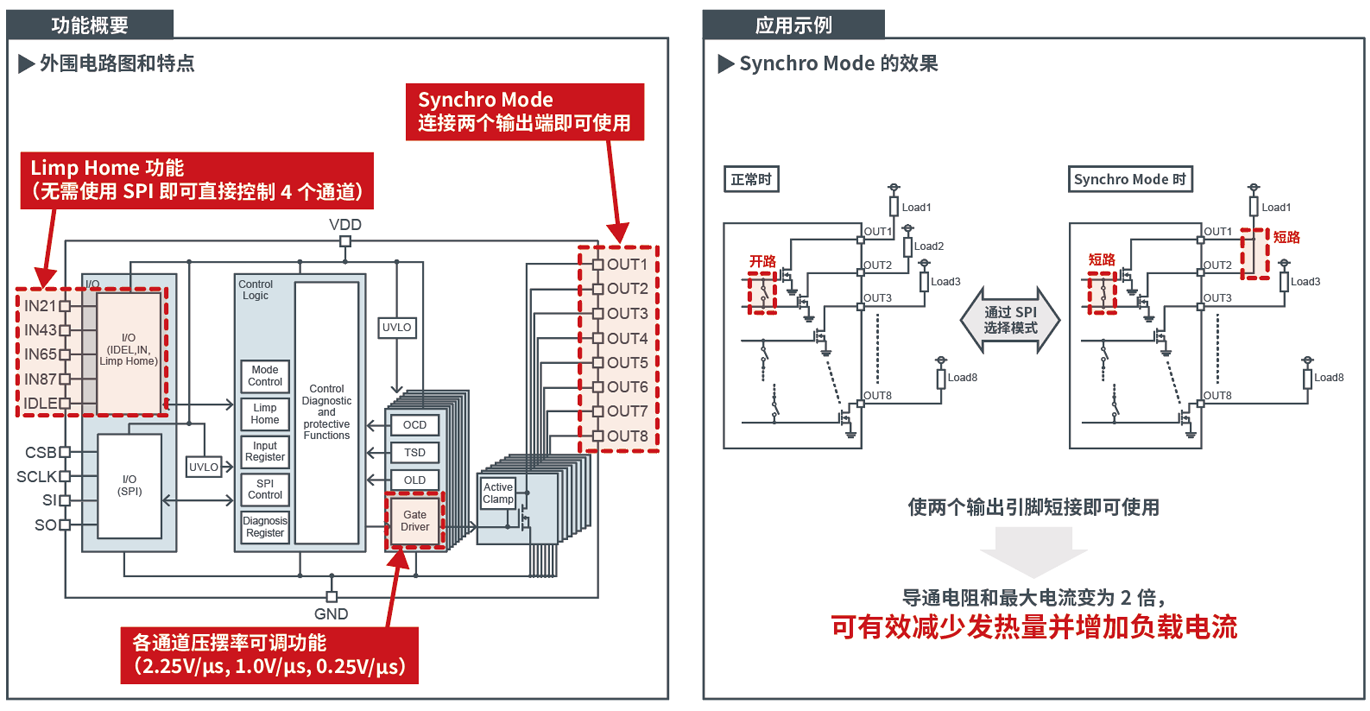

多通道非常适合驱动多个负载
关于TDACC™
TDACC™是ROHM Co., Ltd.的注册商标。ROHM自有的电路和器件技术。IPD内部的功率MOSFET部分在关断时会因反电动势而发热，该技术通过优化控制流过电流的通道数量，实现了在保持小尺寸的前提下很难同时兼顾的低发热量和低导通电阻。
