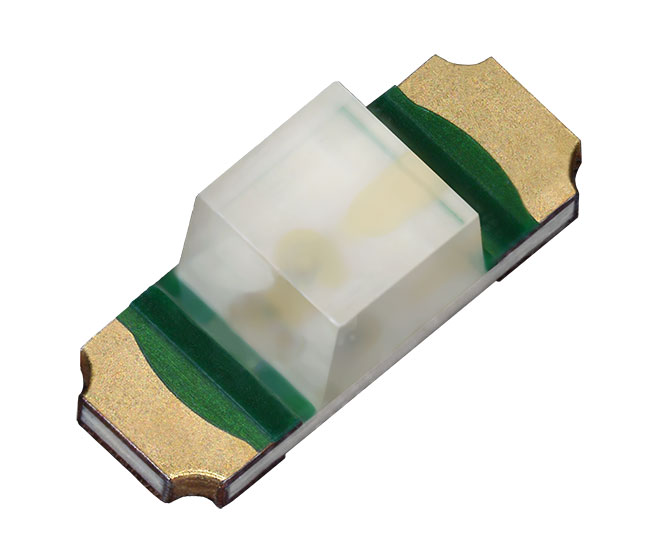

SML-811VT(A)
Reverse mount available chip LED

罗姆的贴片LED,除标准类型外,还有顶面发光LED,侧面发光LED,支持背面安装LED等产品线。

主要规格


型号 | SML-811VTT86A
Status | 推荐品
封装 | SML-81
包装数量 | 3000
最小独立包装数量 | 3000
包装形态 | Taping
RoHS | Yes

特性:

Package Type

Reverse mount available

LED Type

Standard

Application

Home Appliance, Industrial Equipment

Package size[mm]

3.4x1.25 (t=1.1)

Emitting color

Red

Luminous Intensity(Single)(Typ.)[mcd]

22

Number of Brightness Rank

6

Dominant wave-length λD(Single)(Typ.)[nm]

630

Forward Voltage VF (Typ.) [V]

2

IF @ VF [mA]

10

Chip Structure

AlGaInP

Power Dissipation [mW]

62

Operating Temperature[°C]

-40 to 85

Storage Temperature [°C]

-40 to 100

Find Similar

特点:

・可背面安装贴片LED
