ML63Q2534-NNNGD(Taping)
Solist-AI™, 32位微控制器 (Arm® Cortex®-M0+)
ML63Q2534-NNNGD(Taping)
Solist-AI™, 32位微控制器 (Arm® Cortex®-M0+)
ML63Q2534是一款配备32位Arm® Cortex®-M0+处理器和AI加速器“AxlCORE-ODL”的MCU。此外，它还集成了多种外围电路，包括CAN FD控制器、三相电机控制PWM、两个A/D转换器、模拟比较器、I²C、SPI和UART。AI处理期间的低功耗约为40mW，使其成为工业设备和家电预测性故障检测的优良解决方案。
在该系列中，此产品具有128KByte ROM容量和48引脚封装。
主要规格
特性：
Operating Voltage (Min.)[V]
2.3
Operating Voltage (Max.)[V]
5.5
CPU Core
32bit Arm®Cortex®-M0+
ROM type
Flash
ROM Capacity [Byte]
128K
Data Flash Capacity [Byte]
8K
RAM Capacity [Byte]
16K
Input/Output
34
Operating Frequency (Max.) High Speed
48MHz(PLL oscillation)/ 40MHz(Crystal oscillation)
Operating Frequency (Max.) Low Speed
32.768kHz(Internal RC oscillation/Crystal oscillation)
Minimum Instruction Execution Time
20.83ns@48MHz/ 30.5μs@32.768kHz
Current Consumption (Typ.@HALT)
3.5μA(Internal RC oscillation)
Operating Temperature (Min.)[°C]
-40
Operating Temperature (Max.)[°C]
105
AI Accelerator
AxlCORE-ODL
1kHz Timer
1
16bit Timer
6
16bit Multi Functions Timer
2(TMR, PWM, Capture)
WDT
1
ADC (method)
12bit×12ch, 2unit (SA type)
I2C
Master/Slave×1
SSIO
2
UART
Full Duplex×4
Supply Voltage Detection
VLS×1
CAN
1
External Interrupt Sources
8
Others
3 phase motor control PWM×1,
Comparator×3, DMA
Halogen Free Support ?
Yes
Industrial Grade ?
Yes
Automotive Grade
No
Development Support
-
- Reference Board
- RB-D63Q2537TB48
- Supply Status
- Recommended
- Board size (mm)
- W56 × D94 × H12
- Supported MCUs
- ML63Q2534
- ML63Q2537
- Structure
- ML63Q2537 (48PIN TQFP) Reference Board
-
- Starter kit
- SK-AD06-D63Q2557TB
- Supply Status
- Recommended
- Supported MCUs
- ML63Q2500 Group
- Structure
- RB-D63Q2557TB64 (Reference board equipped with Solist-AI™ MCU ML63Q2557)
- KXTJ3-1057-EVK-001 (Acceleration sensor board)
- Multi-function USB conversion module
- Interface cable, USB cable
- Notes
- This starter kit is an evaluation kit that allows you to easily verify the operation of an anomaly detection sample program using an accelerometer, pre-installed on the Solist-AI™ MCU. Based on the data acquired from the accelerometer, the Solist-AI™ MCU calculates the anomaly level in real time, and the results can be monitored using Solist-AI™ Scope.
* A separate debug adapter is required for software development or for rewriting the program when using this starter kit.
-
- Emulator

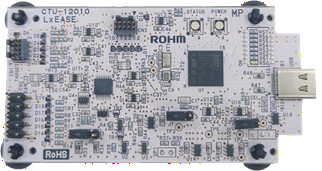

- LxEASE™
- Supply Status
- Recommended
- Board size (mm)
- W45 × D90 × H15.3
- Supported MCUs
- ROHM microcontrollers equipped with Arm® Cortex®-M cores
- Structure
- LxEASE™
- LxEASE™ Interface cable
- USB cable
-
- Isolator Board
- LxEASE™ Isolator
- Supply Status
- Recommended
- Board size (mm)
- W45 × D50 × H24
- Supported MCUs
- ROHM microcontrollers equipped with Arm® Cortex®-M cores
- Structure
- LxEASE™ Isolator
- Notes
- Use this product when the VSS potential between LxEASE™ and the microcontroller does not match, or when debugging in an environment that is susceptible to power supply noise.
LxEASE™ is a trademark or registered trademark of ROHM Co., Ltd.
