基于PLECS®模型的功率器件高速仿真工具ROHM PLECS Simulator

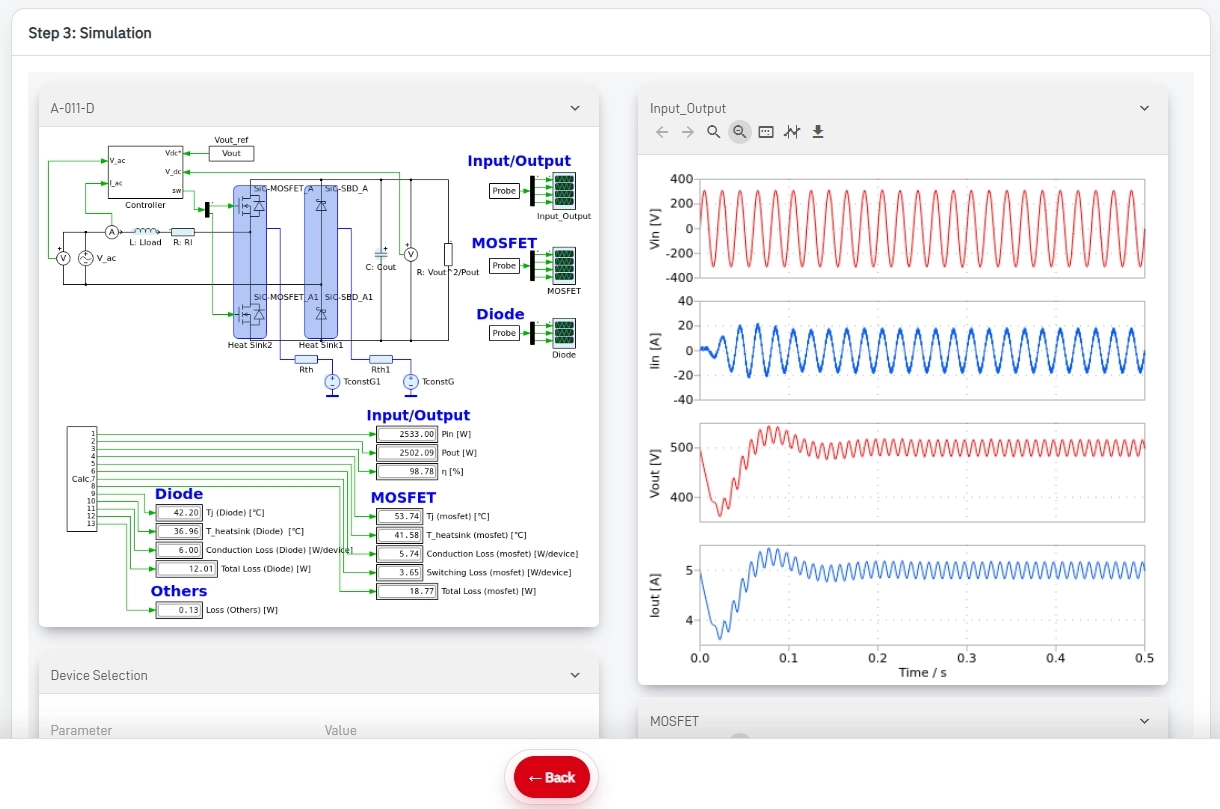

ROHM PLECS Simulator是一款通过直观操作即可快速便捷地完成电力电子开发中功率元器件选型的在线仿真工具。通过预置的电路拓扑，可快速选定器件并即时确认损耗、温度及波形特性。实现规格所需的器件能力和散热器的热特性等性能均可验证。
从设计初期的方案探讨到元器件选型、工作情况比较，均可流畅执行。本工具可供所有人免费使用（需注册MyROHM账号）。
另外，试用版还可以执行图腾柱电路的仿真。这里无需注册即可使用，诚邀您体验本工具的各项功能。
PLECS®是Plexim, Inc. 的注册商标。
文档
对应拓扑一览表
| Category | No. | Suffix | Circuit Name | |
|---|---|---|---|---|
| PFC | A-002 | D | AC-DC Boost PFC Diode Rectification (Equipped with Discrete) |
|
| PFC | A-010 | DOT | AC-DC Totem-Pole PFC Synchronous Rectification (Equipped with DOT-247 Package) |
|
| PFC | A-011 | D | AC-DC Totem-Pole PFC Diode Rectification (Equipped with Discrete) |
|
| PFC | A-021 | D | AC-DC 3-Phase Vienna PFC (Equipped with Discrete) |
|
| PFC | A-021 | DOT | AC-DC 3-Phase Vienna PFC (Equipped with DOT-247 Package) |
|
| Inverter | B-004 | D | DC-AC single-phase 2-Level Full-Bridge Inverter (Equipped with Discrete) |
|
| Inverter | B-004 | DOT | DC-AC single-phase 2-Level Full-Bridge Inverter (Equipped with DOT-247 Package) |
|
| Inverter | B-009 | D | DC-AC 3-phase 2-Level Motor Driver (Equipped with Discrete) |
|
| Inverter | B-011 | DOT | DC-AC 3-phase 3-Level NPC-Type-T Inverter (Equipped with DOT-247 Package) |
|
| Inverter | B-012 | DOT | DC-AC 3-phase 3-Level NPC-Type-I Inverter (Equipped with DOT-247 Package) |
|
| DC-DC | C-002 | D | DC-DC Boost Converter (Equipped with Discrete) |
|
| DC-DC | C-006 | D | DC-DC Buck Converter (Equipped with Discrete) |
|
| DC-DC | C-010 | D | DC-DC Flyback Converter (Equipped with Discrete) |
|
| DC-DC | C-011 | D | DC-DC Forward Converter (Equipped with Discrete) |
|
| DC-DC | C-014 | D | DC-DC LLC Full-Bridge Converter (Equipped with Discrete) |
|
| DC-DC | C-014 | DOT | DC-DC LLC Full-Bridge Converter (Equipped with DOT-247 Package) |
|
| DC-DC | C-019 | D | DC-DC Phase-Shift Full-Bridge Converter (Equipped with Discrete) |
|
| DC-DC | C-019 | DOT | DC-DC Phase-Shift Full-Bridge Converter (Equipped with DOT-247 Package) |
|
| DC-DC | C-023 | D | DC-DC LLC Half-Bridge Converter (Equipped with Discrete) |
|
| DC-DC | C-023 | DOT | DC-DC LLC Half-Bridge Converter (Equipped with DOT-247 Package) |
|
