ML7425AGD (新产品)
Sub-GHz LSI
ML7425AGD (新产品)
Sub-GHz LSI
ML7425A是一款单芯片低功耗sub-GHz无线电收发器LSI，集成了RF、IF、MODEM和HOST接口。
射频频率支持145至1,020MHz范围。此外，可编程信道选择滤波器可支持1.7kHz至1,200kHz的接收频段。
ML7425A可用于欧洲遥测标准（Wireless M-Bus）中的F模式（434MHz）以及S/T/C/R模式（868MHz），日本低功耗安全系统无线电站和指定的低功耗无线电站（ARIB STD-30、STD-T67、STD-T108），以及全球Sigfox标准。
ML7425A包含IEEE802.15.4g和Wireless M-Bus分组处理功能。
主要规格
特性：
Support Standard
Sigfox, ARIB STD-T67, ARIB STD-T108, RCR STD-30, EN300-220, EN13757-4:2013, IEEE802.15.4g/15.4aa
Frequency Band [MHz]
160, 400, 860, 920
(145 to 1020)
Tx Power [dBm]
1/10/13
Max. Data Rate [kbps]
1200
Modulation Method ?
2-FSK
4-FSK
BPSK (TX only)
RF Function
Antenna Diversity
Communication Mode
Packet (SPI),
DIO
Operating Temperature (Min.)[°C]
-40
Operating Temperature (Max.)[°C]
105
Development Support
-
- Reference Board
- ML7425A-EVK
- Supply Status
- Recommended
- EVK Model Name
- ML7425A-EVK-000 (920MHz Band, 13dBm)
- ML7425A-EVK-001 (868MHz Band, 13dBm)
- ML7425A-EVK-002 (426-433MHz Band, 13dBm)
- Support Standard
- ARIB STD-T108 (920MHz)
- EN300-220
- EN13757-4 Wireless M-Bus
- Host I/F
- Synchronous serial
- Components
- Evaluation Board
- Control Board
- USB cable
- Notes

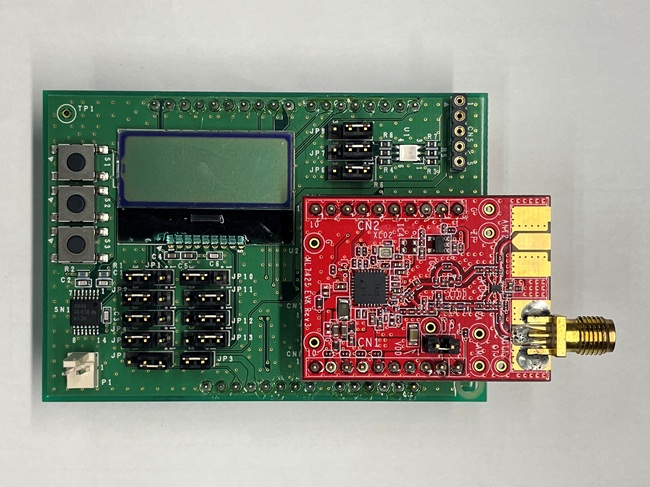

Evaluation kit for evaluating RF performance
The evaluation kit (evaluation board, control board, software) is available for transmitting and receiving tests of the ML7425A.
The ML7425A evaluation kit provides GUI interactive software for PC for easy configuration of transmit and receive tests. In addition, by using the RF test macro, TELEC test items can be measured immediately.
