功率级拓扑选择 - 电动汽车用车载充电器 (OBC)

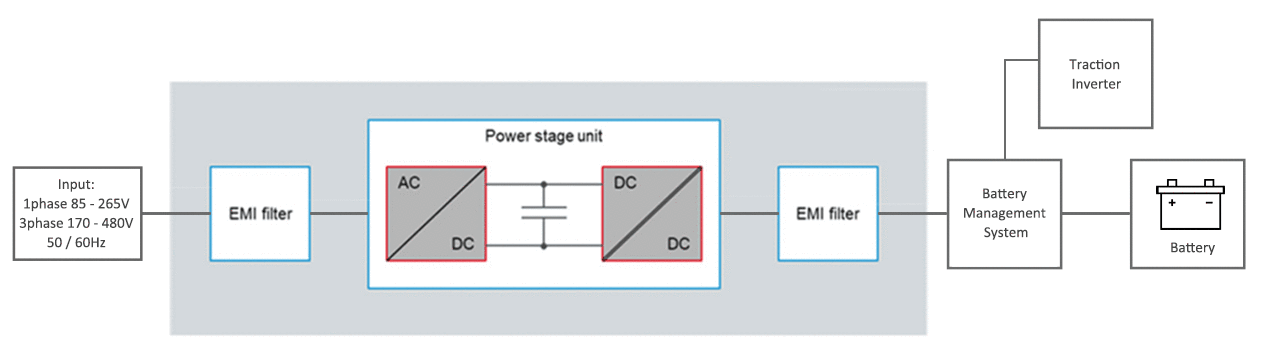

Power Stage
                Topology Selection - ON Board Charger for EV (OBC)

AC/DC

  • Interleaved Boost PFC

    Interleaved Boost PFC

  • Totem-Pole Bridgeless PFC (Diode Rectification)

    Totem-Pole Bridgeless PFC
    (Diode Rectification)

  • Totem-Pole Bridgeless PFC (Synchronous FETs)

    Totem-Pole Bridgeless PFC
    (Synchronous FETs)

  • 3-phase 2-level full bridge PFC  (Bidirectional)

    3-phase 2-level full bridge PFC
    (Bidirectional)

  • 3-phase 3-level vienna PFC (Unidirectional)

    3-phase 3-level vienna PFC
    (Unidirectional)

DC/DC

  • LLC Converter(Full Bridge, Diode Bridge)

    LLC Converter
    (Full Bridge, Diode Bridge)

  • Dual Active Bridge(DAB) Converter

    Dual Active Bridge
    (DAB) Converter
